Pumps
Water Pumps

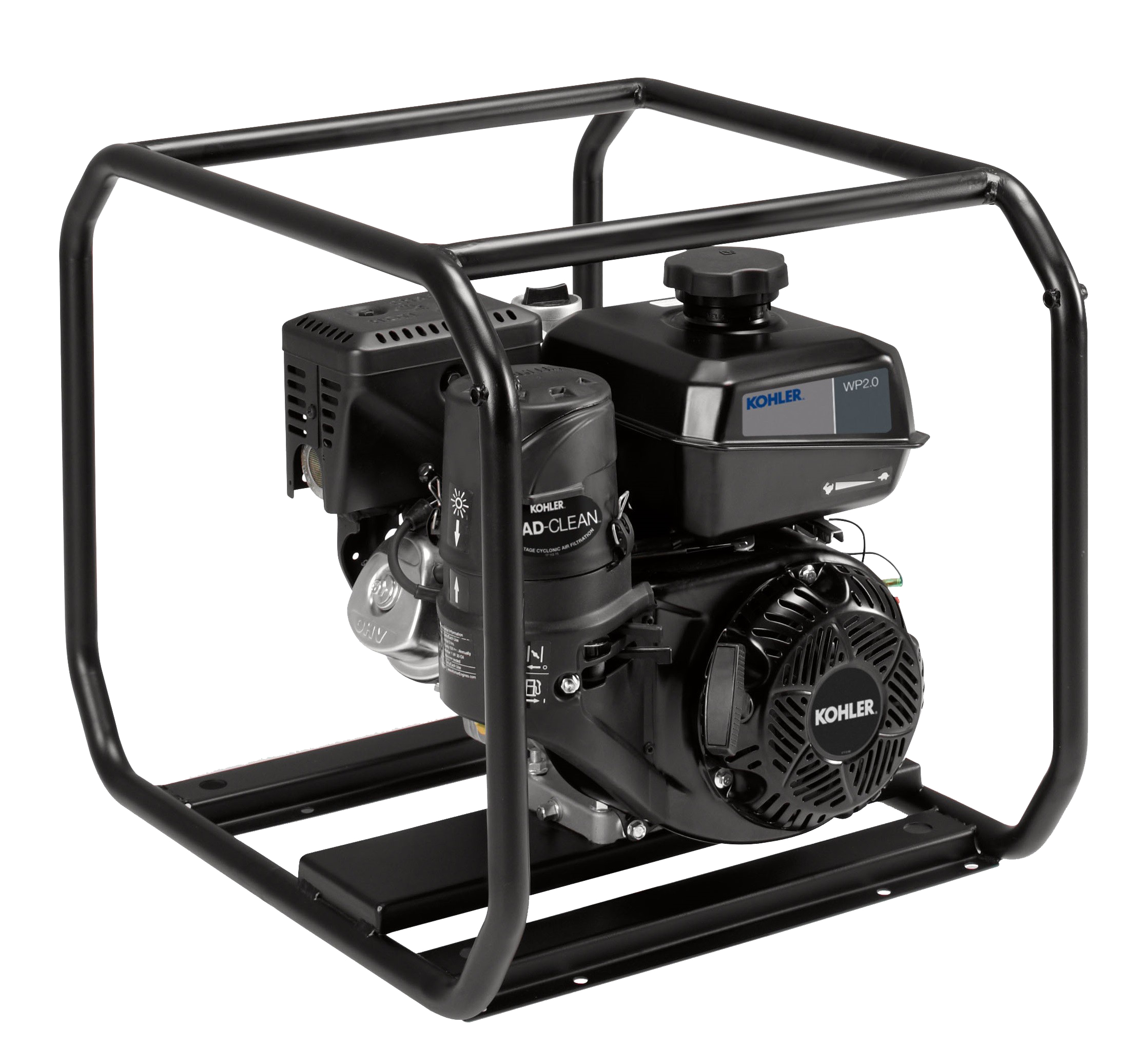

WP2.0
2" Water Pump
Engine displacement (cu in/cc) - 12.7/208
Fuel type - Gasoline
Fuel tank capacity (gal/L) - 1.1/4.1
Total head (ft/mm) - 26/7.9
Flow rate (gpm/lpm) - 159/601
Impeller - Cast Iron
Volute - Cast Iron
Pump body - Aluminum
Dry weight (lb/kg) - 66/29.9

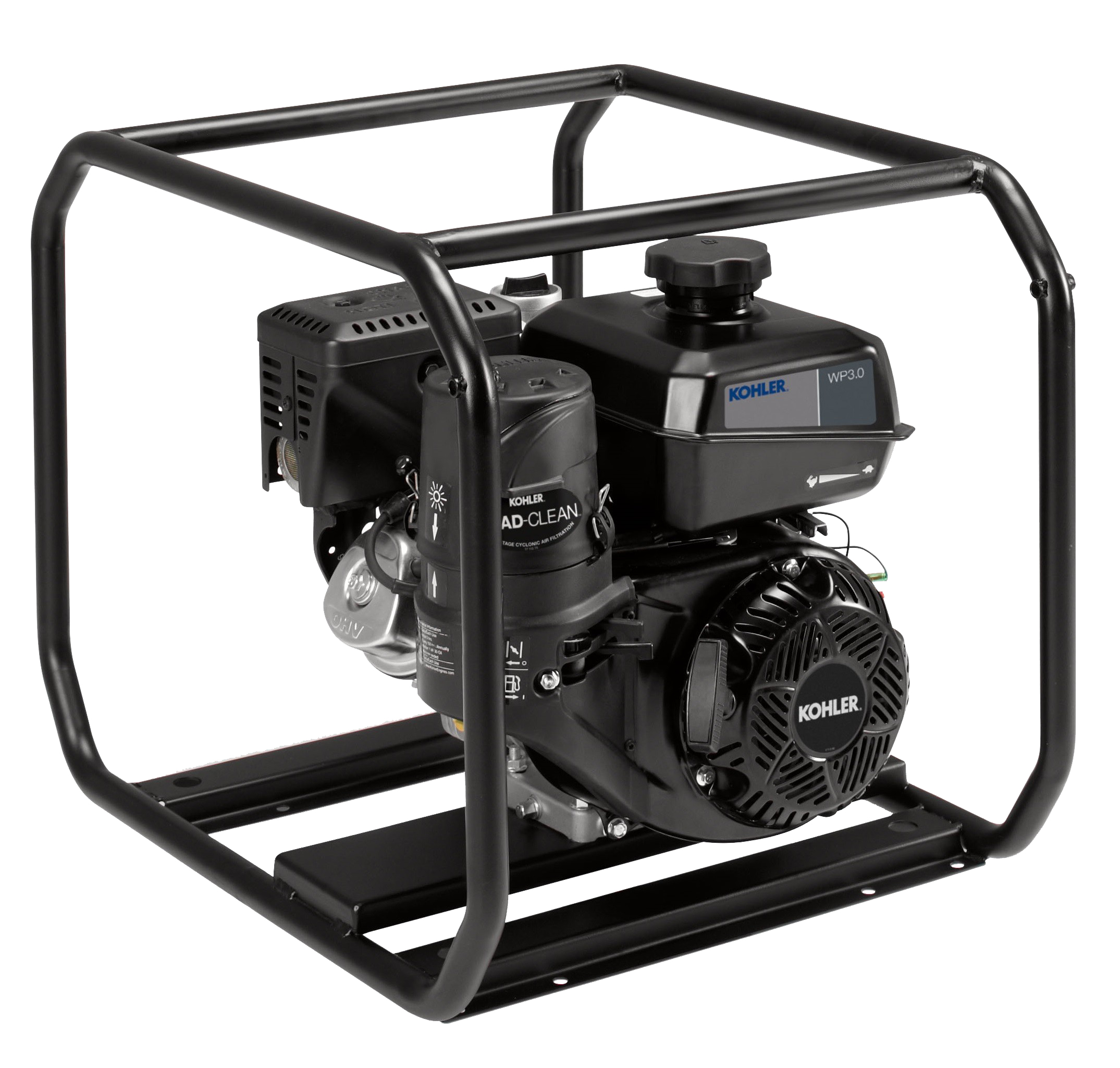

WP3.0
3" Water Pump
Engine displacement (cu in/cc) - 12.7/208
Fuel type - Gasoline
Fuel tank capacity (gal/L) - 1.1/4.1
Total head (ft/m) - 98/29.8
Suction head (ft/m) - 26/7.9
Flow rate (gpm/lpm) - 265/1,003
Impeller - Cast Iron
Volute - Cast Iron
Pump body - Aluminum
Dry weight (lb/kg) - 77/34.9
Trash Pumps

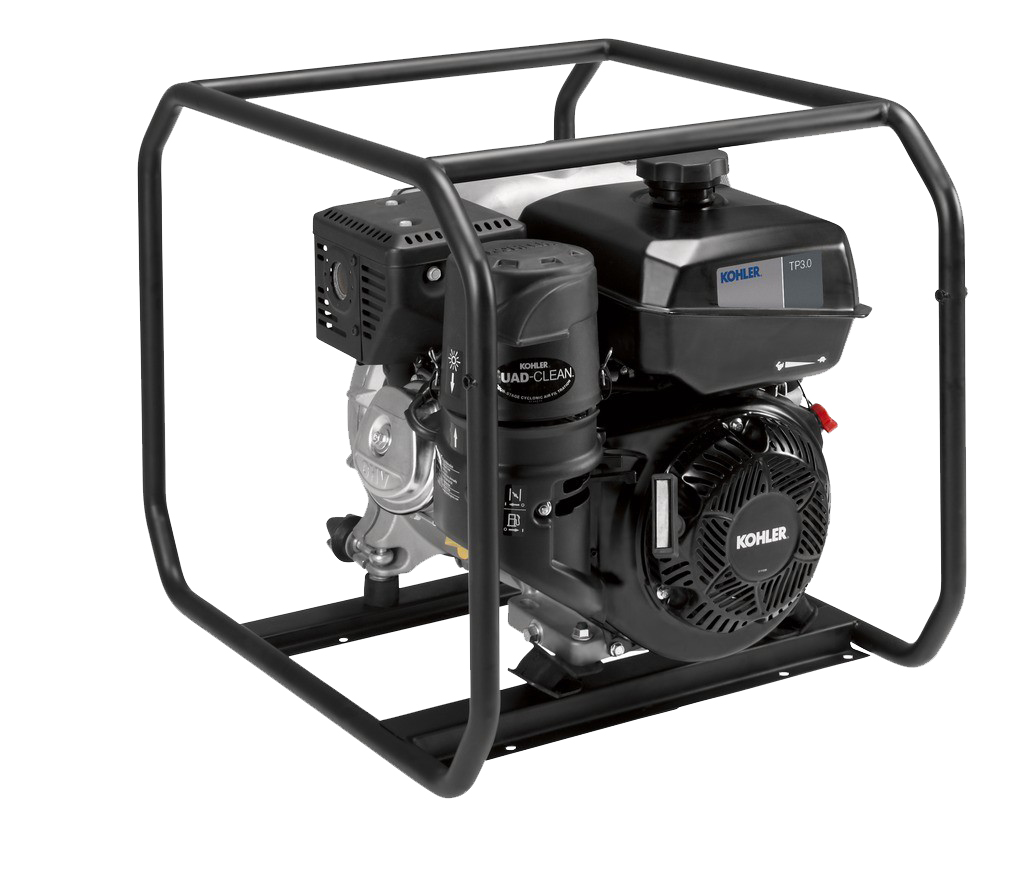

TP3.0
3" Water Pump
Engine displacement (cu in/cc) - 16.9/277
Fuel type - Gasoline
Fuel tank capacity (gal/L) - 1.8/6.8
Total head (ft/mm) - 85/26
Suction head (ft/m) - 26/7.9
Flow rate (gpm/lpm) - 317/1,200
Impeller - Cast Iron
Volute - Cast Iron
Pump body - Cast Iron
Dry weight (lb/kg) - 137/62.1

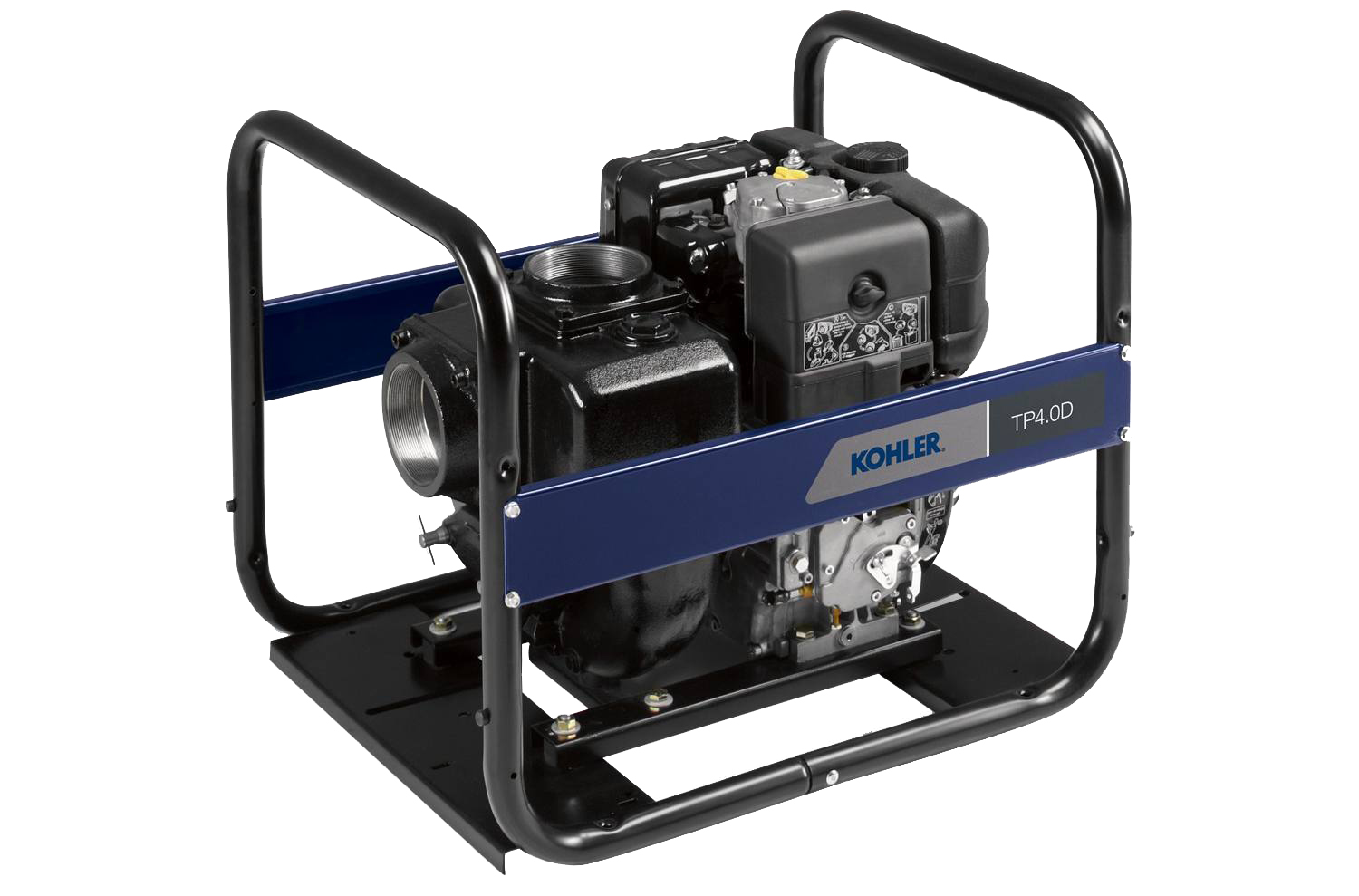

TP4.0D
3" Water Pump
Engine displacement (cu in/cc) - 16.9/277
Fuel type - Gasoline
Fuel tank capacity (gal/L) - 1.8/6.8
Total head (ft/mm) - 85/26
Suction head (ft/m) - 26/7.9
Flow rate (gpm/lpm) - 317/1,200
Impeller - Cast Iron
Volute - Cast Iron
Pump body - Cast Iron
Dry weight (lb/kg) - 137/62.1
Palco Power Systems is an authorized and independent Honda Power Equipment Dealer - no a subsidiary or division of American Honda Motor Co. Inc. As such, Palco Power Systems is soley responsible for the content of this website.
Our most popular Honda Pumps are displayed below. If you do not see the model or application you desire, please contact us.
Construction & Industrial Pumps
Trash Pumps

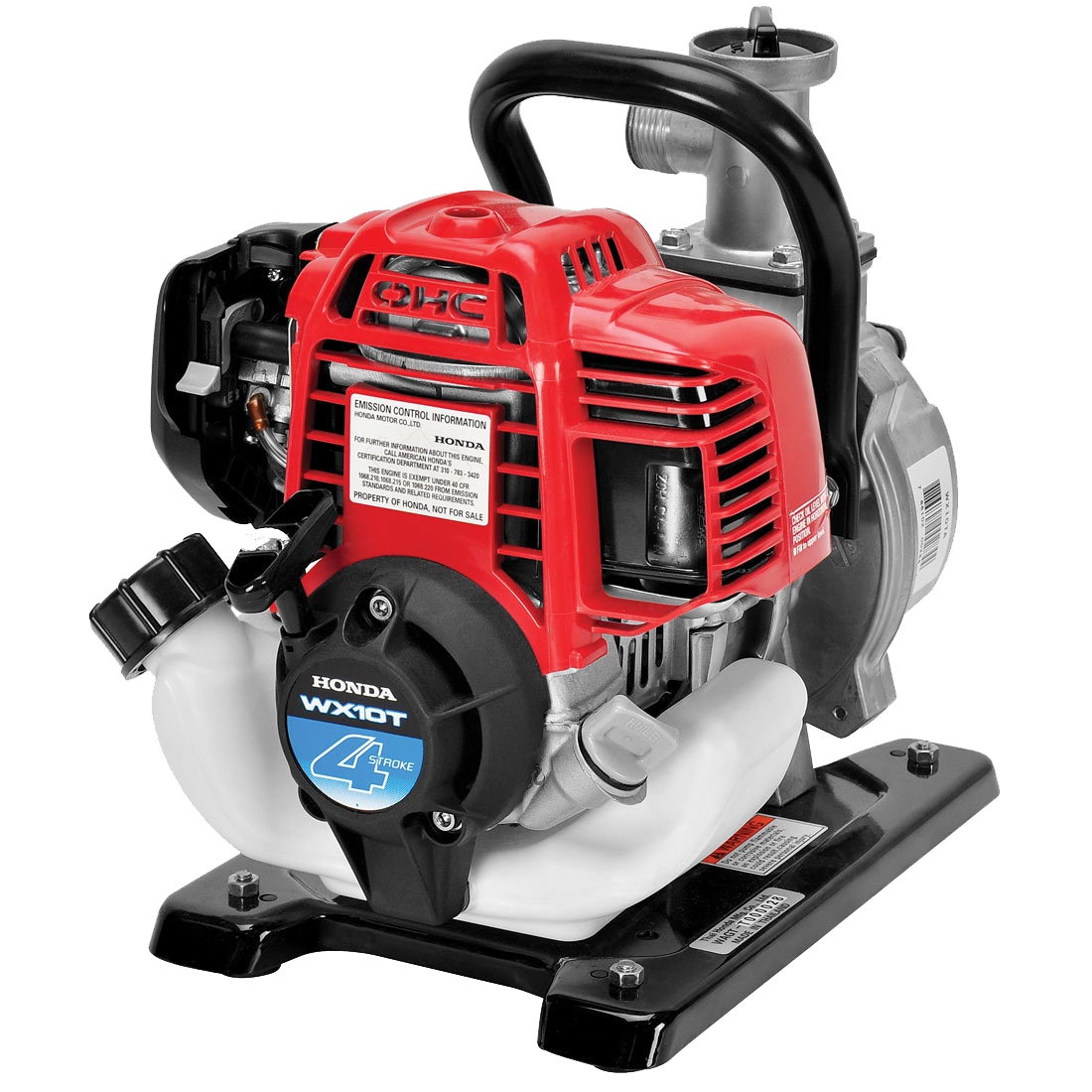

Honda WX10TA
Lightweight general purpose 1" pump
Easy starting Honda mini 4-stroke engine
32 gal./min capacity
Weight: 13lbs.
Garden hose adaptor, suction hose, clamps and strainer included

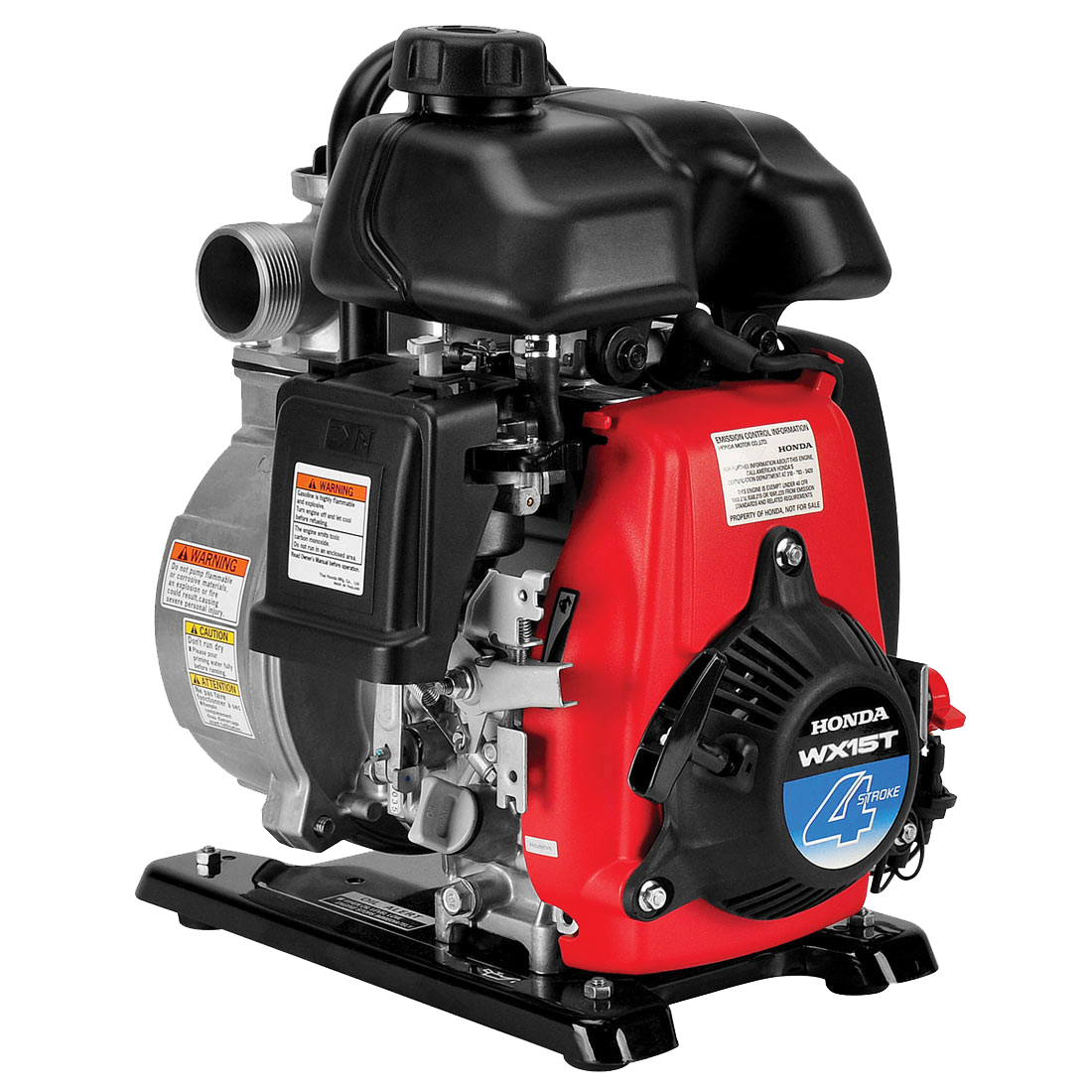

WX15TA
Lightweight general purpose 1.5" pump
Easy starting Honda mini 4-stroke engine
74 gal./min capacity
Weight: 20lbs.
Hose clamps and strainer included

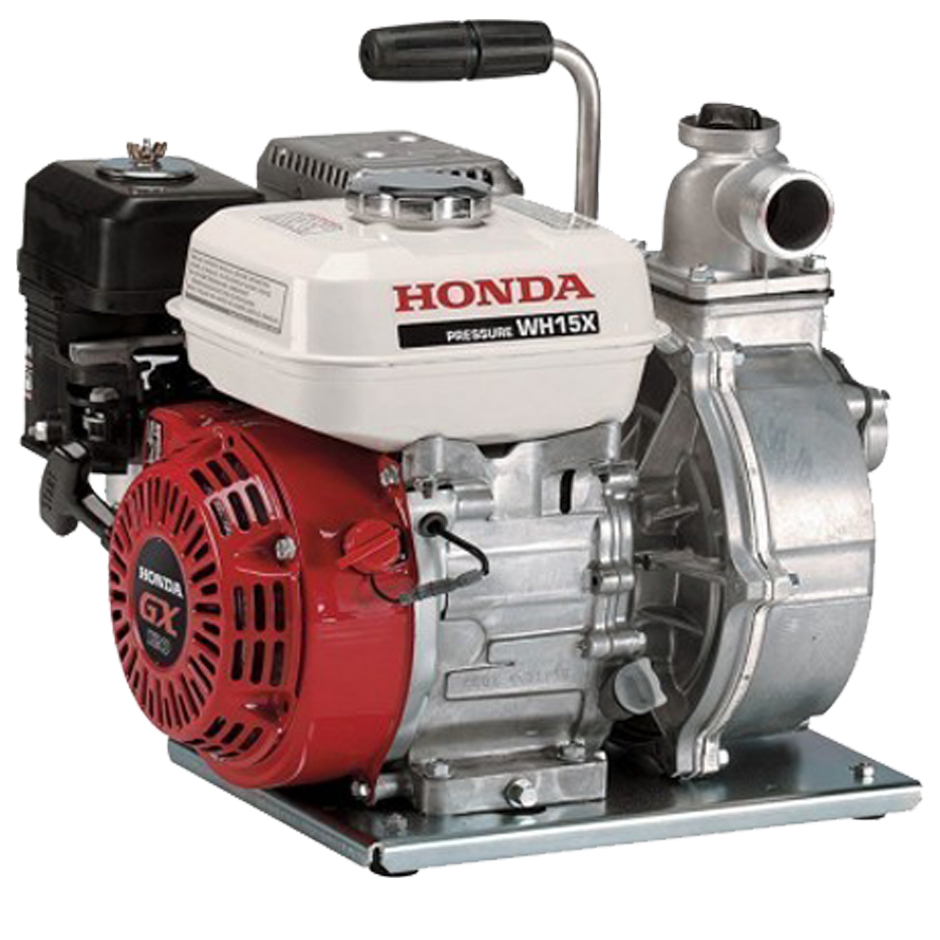

Honda WH15XK2AC1
High pressure 1.5" centrifugal pump
Easy starting Honda mini 4-stroke engine
98 gal./min capacity
57 psi max
Cast iron volute and impeller

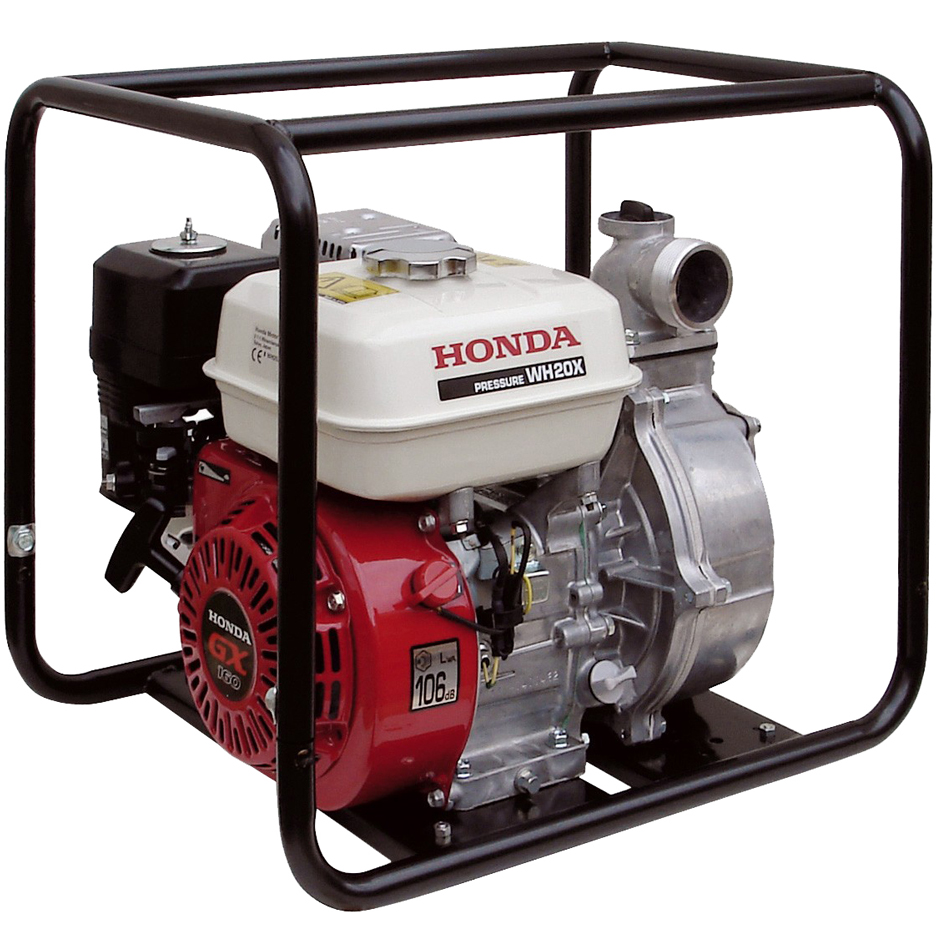

WH20XK2AC1
High pressure 2" centrifugal pump
Easy starting Honda OHV commercial-grade engine
134 gal./min capacity
61 psi max
Lightweight aluminum case
Cast iron volute and impeller

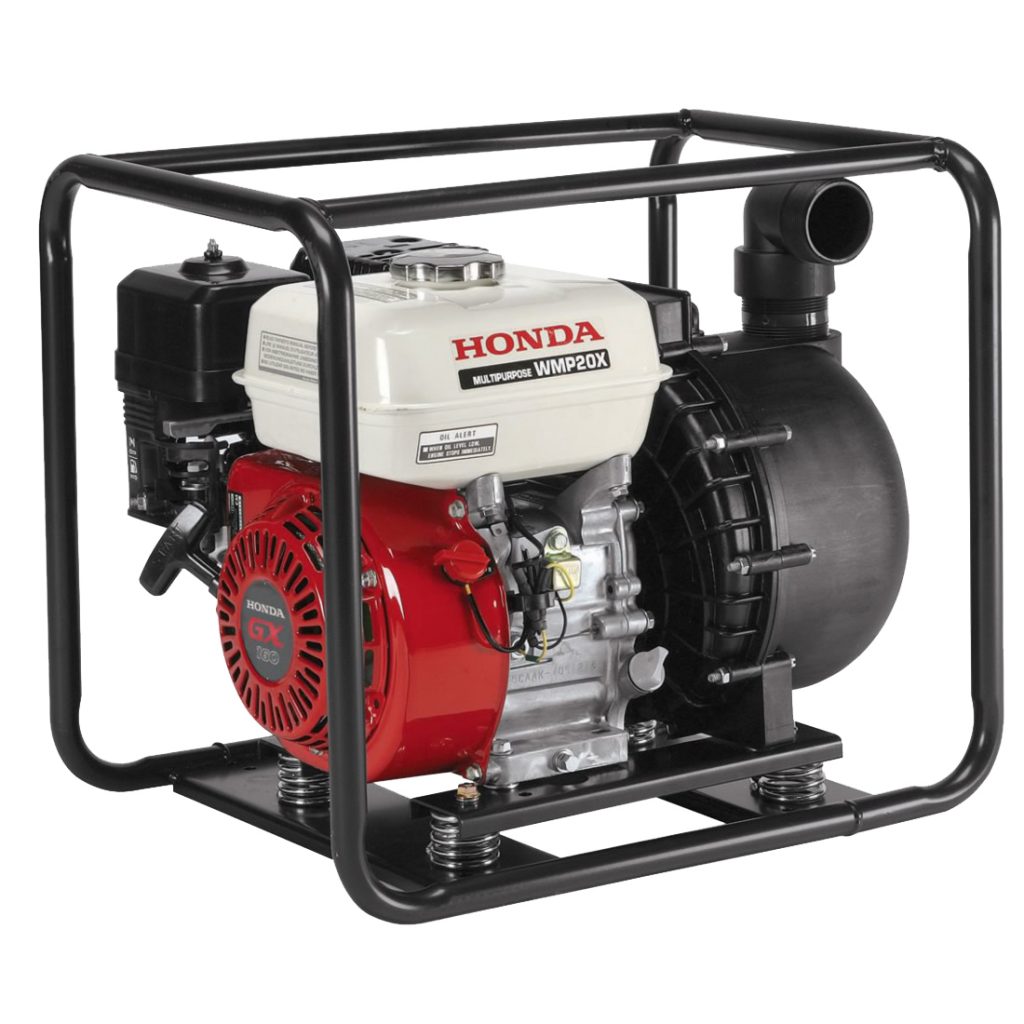

Honda WMP20X1AT
High pressure 2" centrifugal pump
Easy starting Honda OHV commercial-grade engine
134 gal./min capacity
61 psi max
Lightweight aluminum case
Cast iron volute and impeller

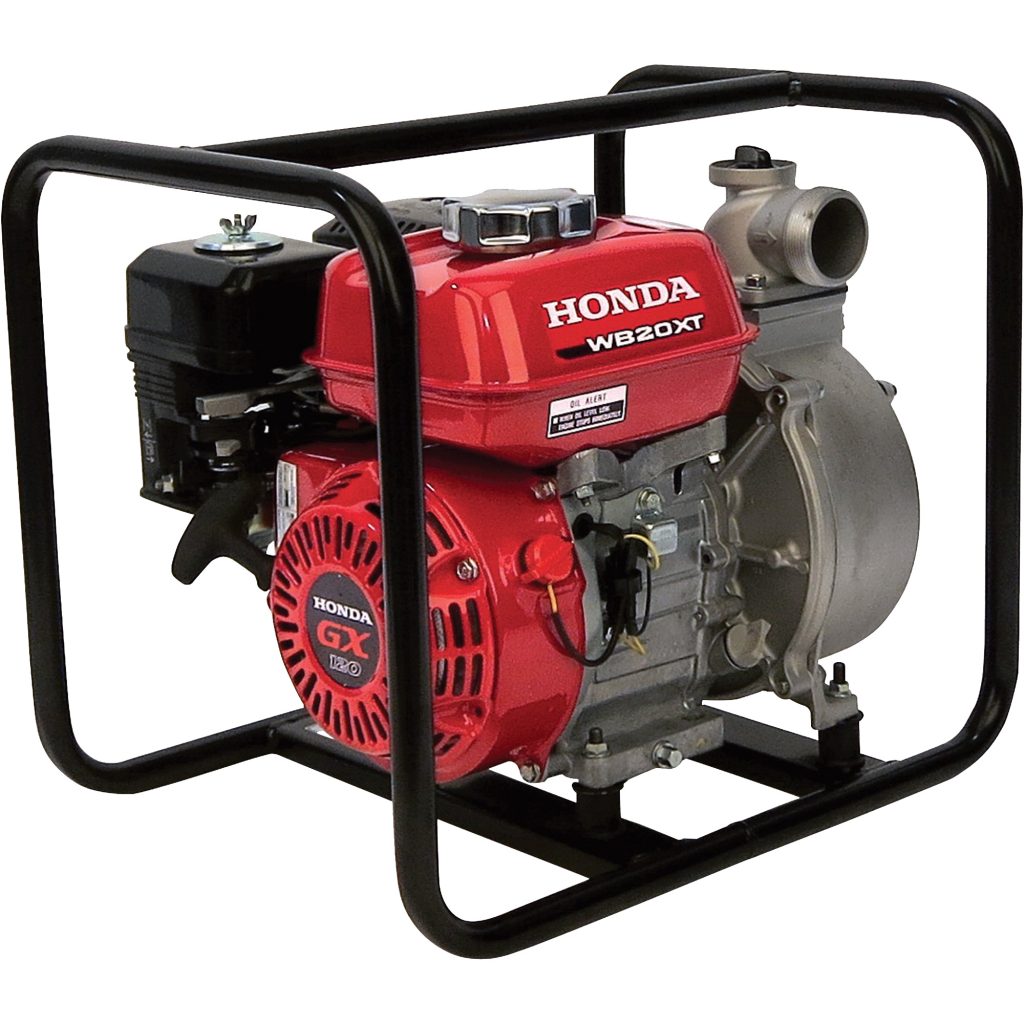

WB20XT3A
High pressure 2" centrifugal pump
Easy starting Honda OHV commercial engine
164 gal./min capacity
Durable silicon carbide mechanical seal
Cast iron volute and impeller

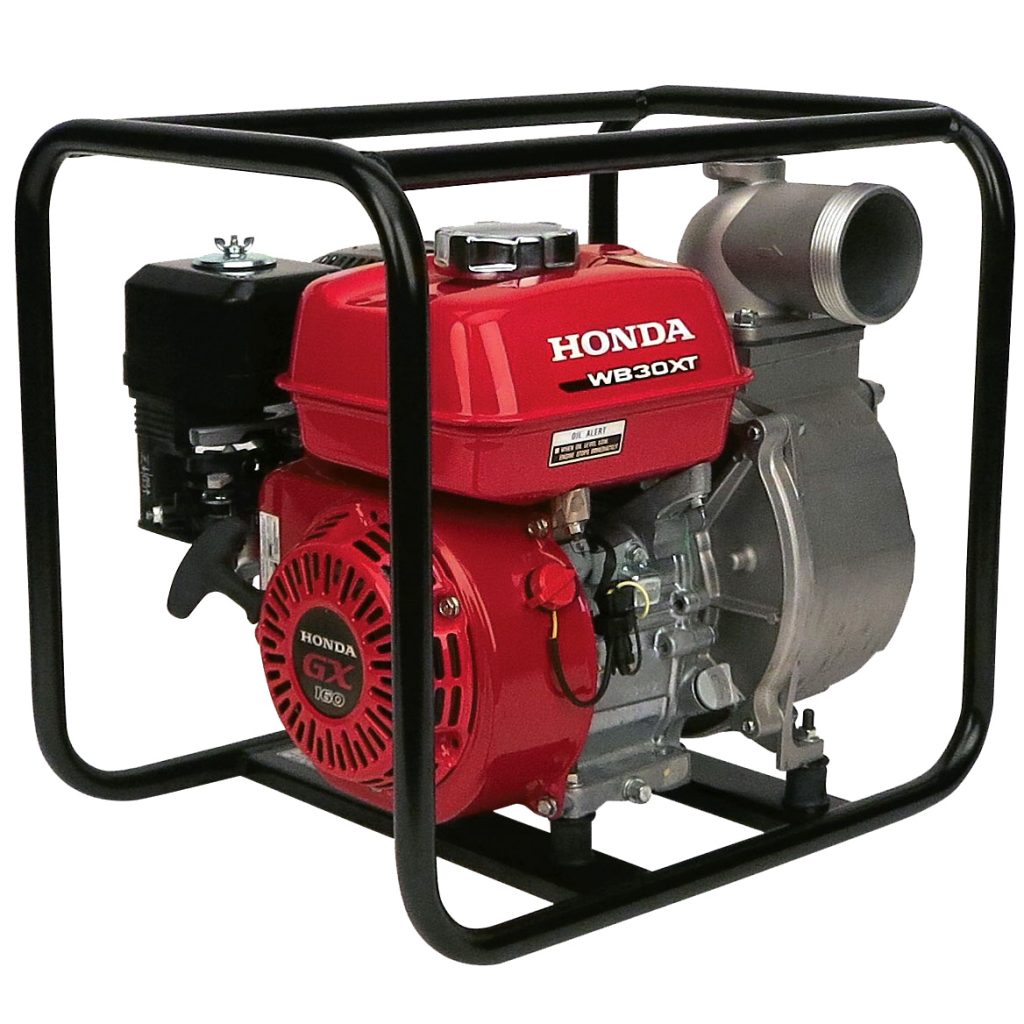

Honda WB30XT3A
General purpose, centrifugal 3" pump
Easy starting Honda OHV commercial engine
290 gal./min capacity
Silicon carbide mechanical seal
Cast iron volute and impeller

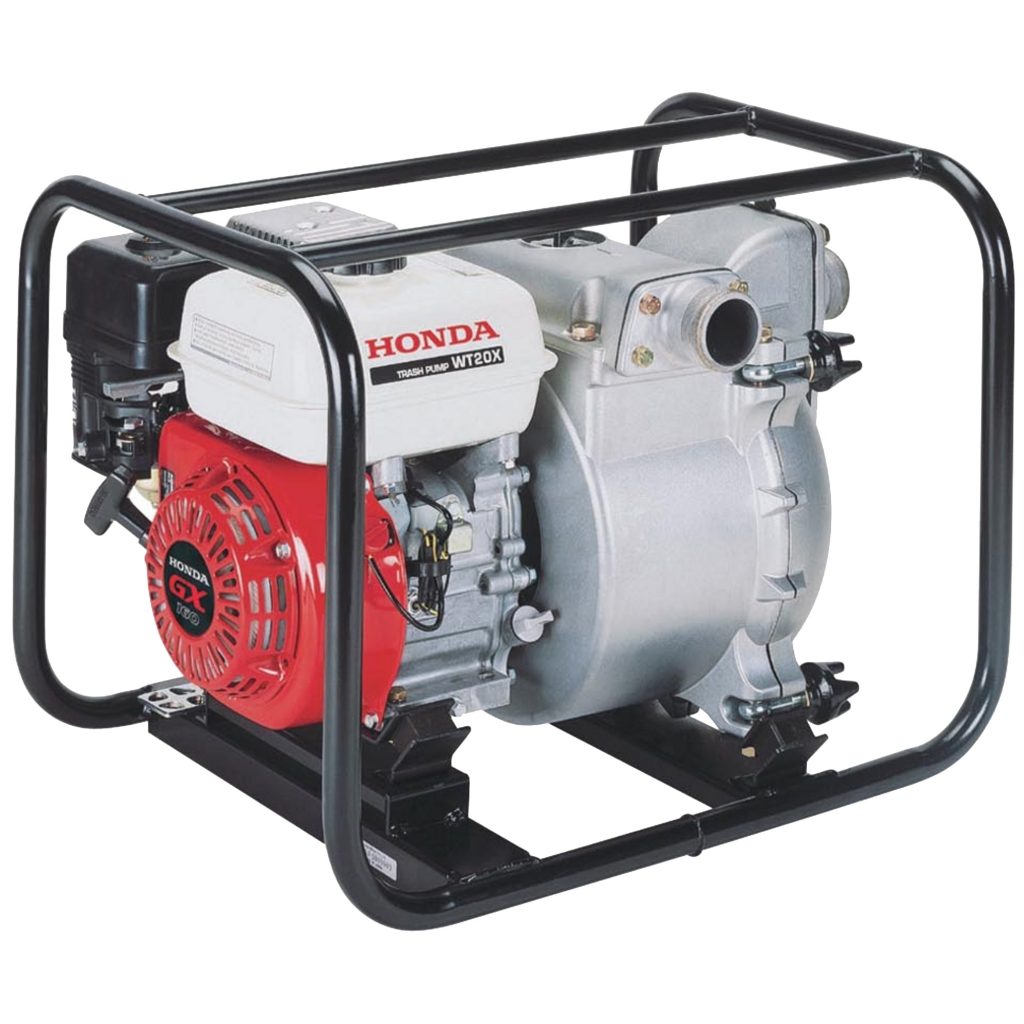

WT20XK4AC
Heavy-duty 2" construction trash pump
Easy starting Honda OHV commercial engine
185 gal./min capacity
Solid handling capability up to 13/16"
Cast iron volute and impeller
Quick clean out port

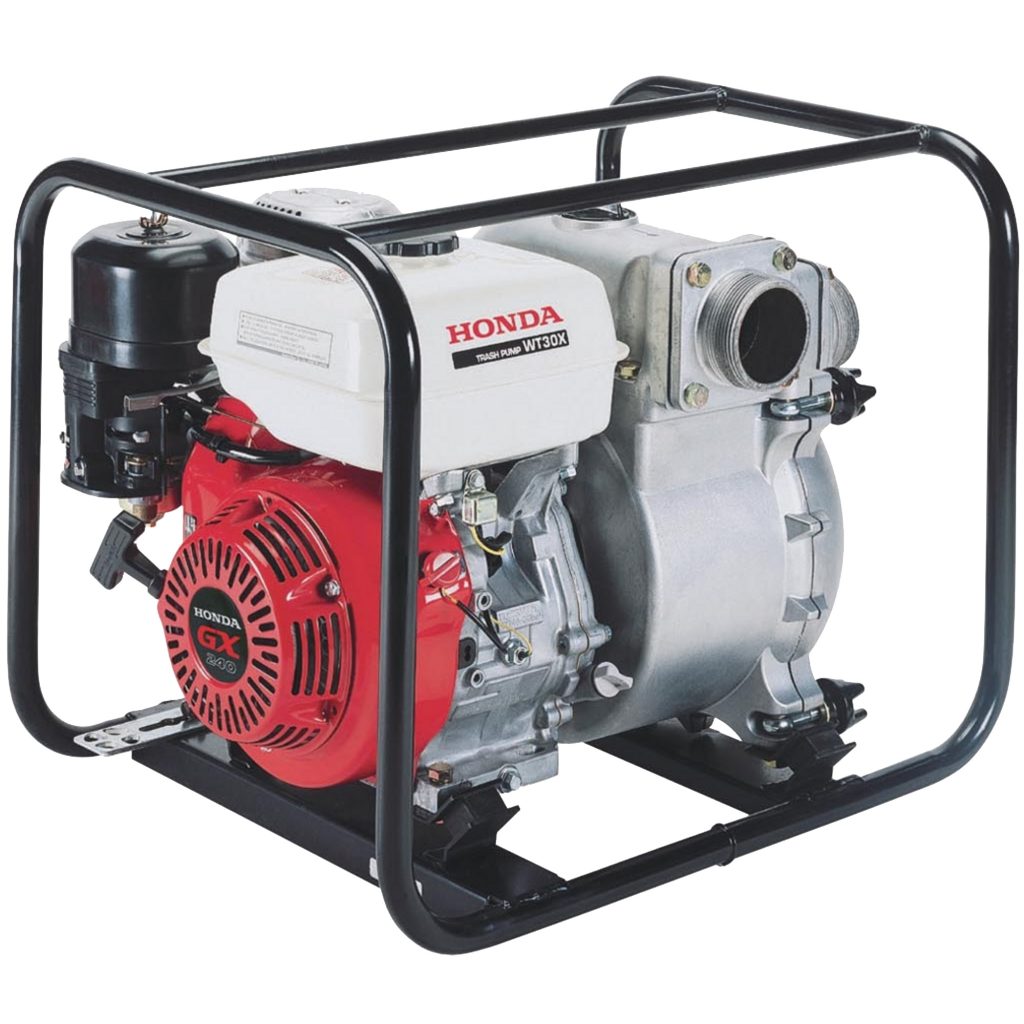

Honda WT30XK4A
Heavy-duty 3" construction trash pump
Easy starting Honda OHV commercial engine
317 gal./min capacity
Solid handling capability up to 1-1/16"
Cast iron volute and impeller
Quick clean out port

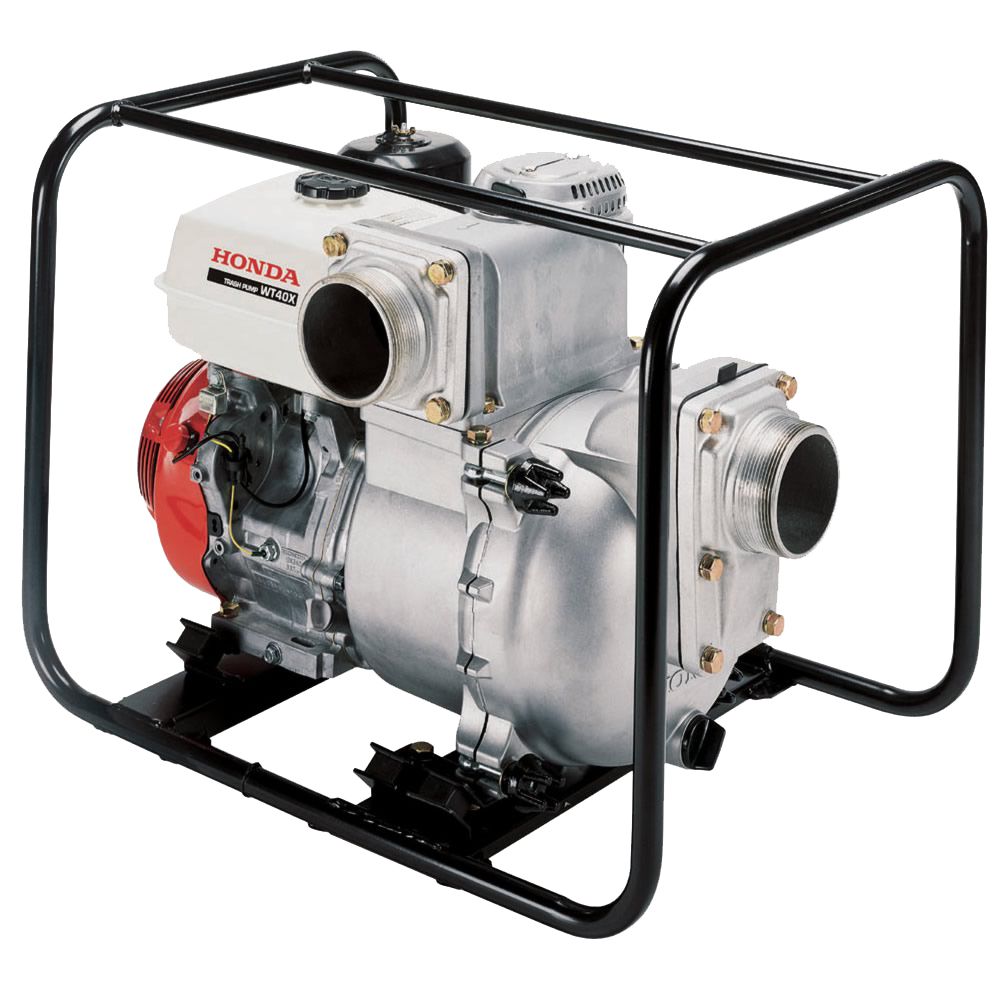

WT40XK3A
Heavy-duty 4" construction trash pump
Easy starting Honda OHV commercial engine
423 gal./min capacity
Solid handling capability up to 1-1/16"
Cast iron volute and impeller
Quick clean out port

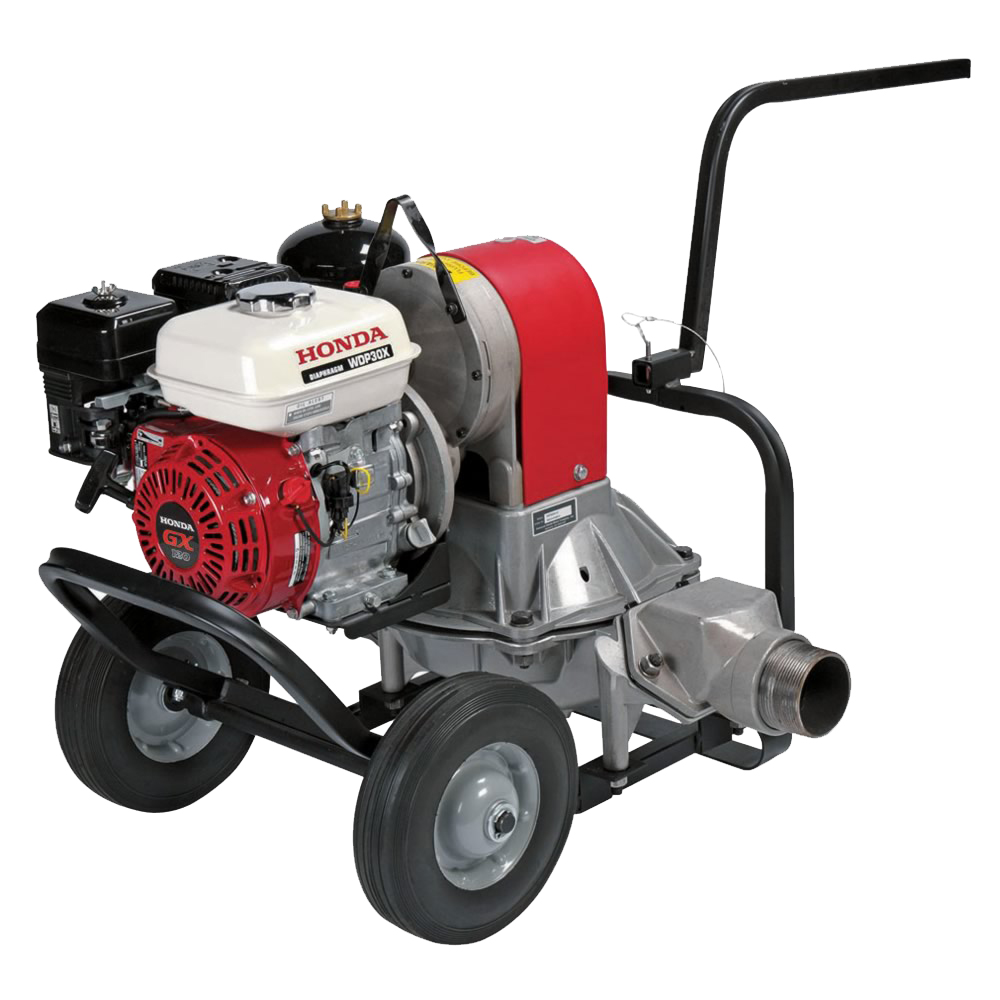

Honda WDP30XK2AT
Dry, self-priming 3" diaphragm pump
Easy starting Honda OHV commercial engine
80 gal./min capacity
Special "rock channel" and spring loaded connecting rod help prevent case damage
Perfect for low volume, dry run operation

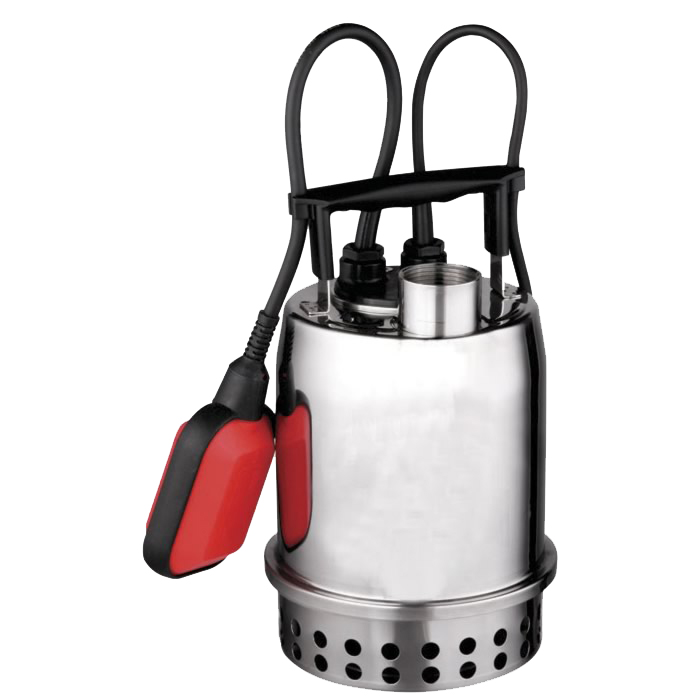

WSP33K1AA
1/3 hp 115V submersible pump
Top discharge
40 gal./min capacity
Lightweight durable stainless steel casing
Automatic non-mercury float switch
Rated for continuous use

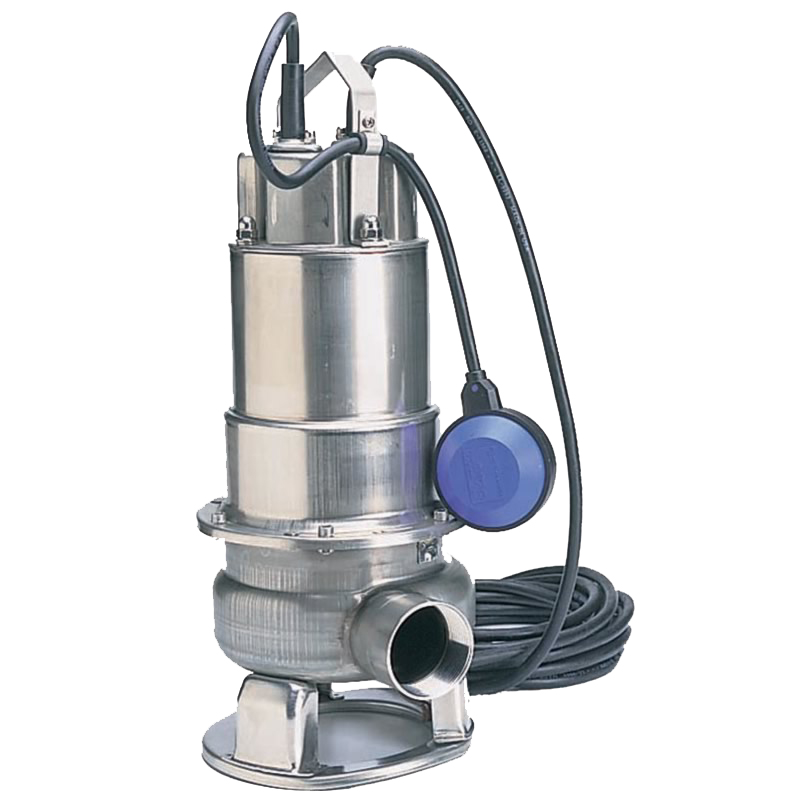

Honda WSP50AA
1/2 hp 115V submersible trash pump
Side discharge
110 gal./min capacity
Solids handling capability up to 2"
Automatic non-mercury float switch
Rated for continuous use

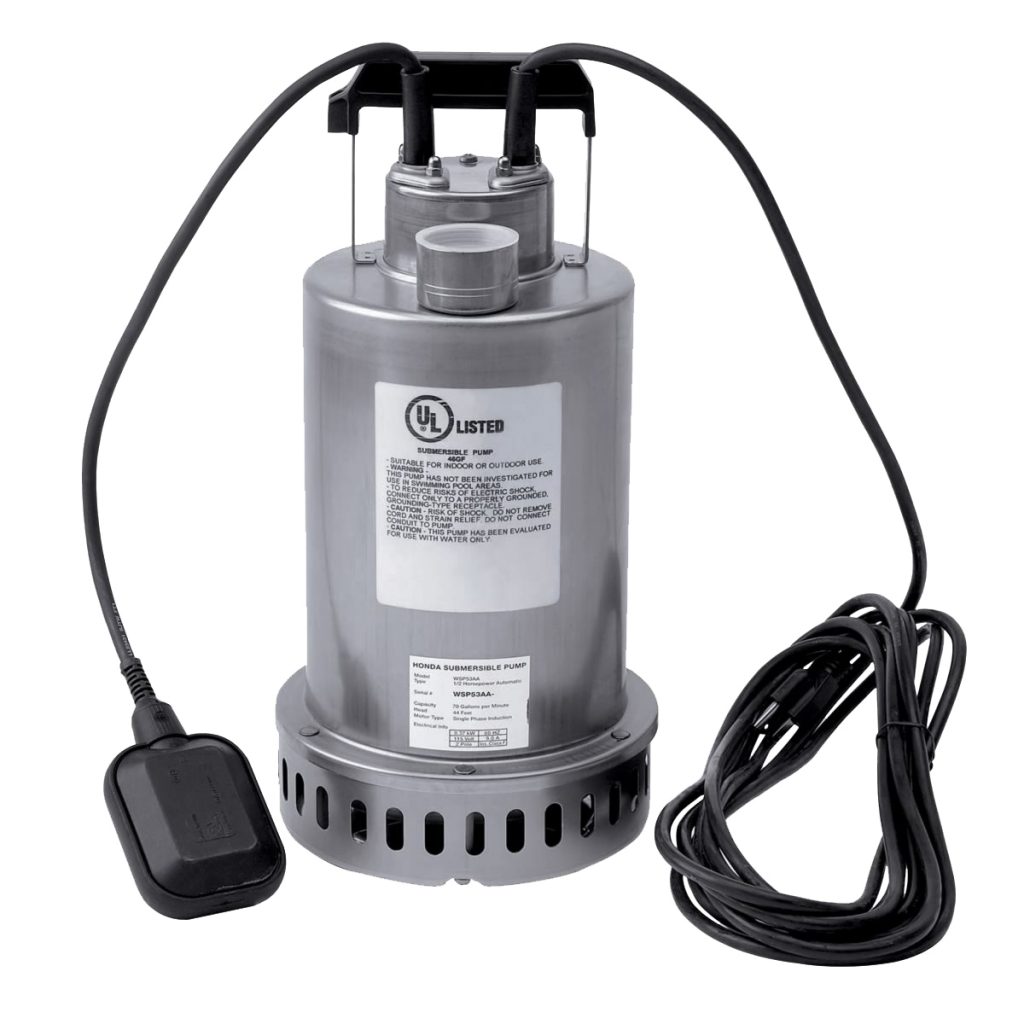

WSP53AA
1/2 hp 115V submersible trash pump
Top discharge
70 gal./min capacity
Automatic non-mercury float switch
Double mechanical seal construction
Rated for continuous use

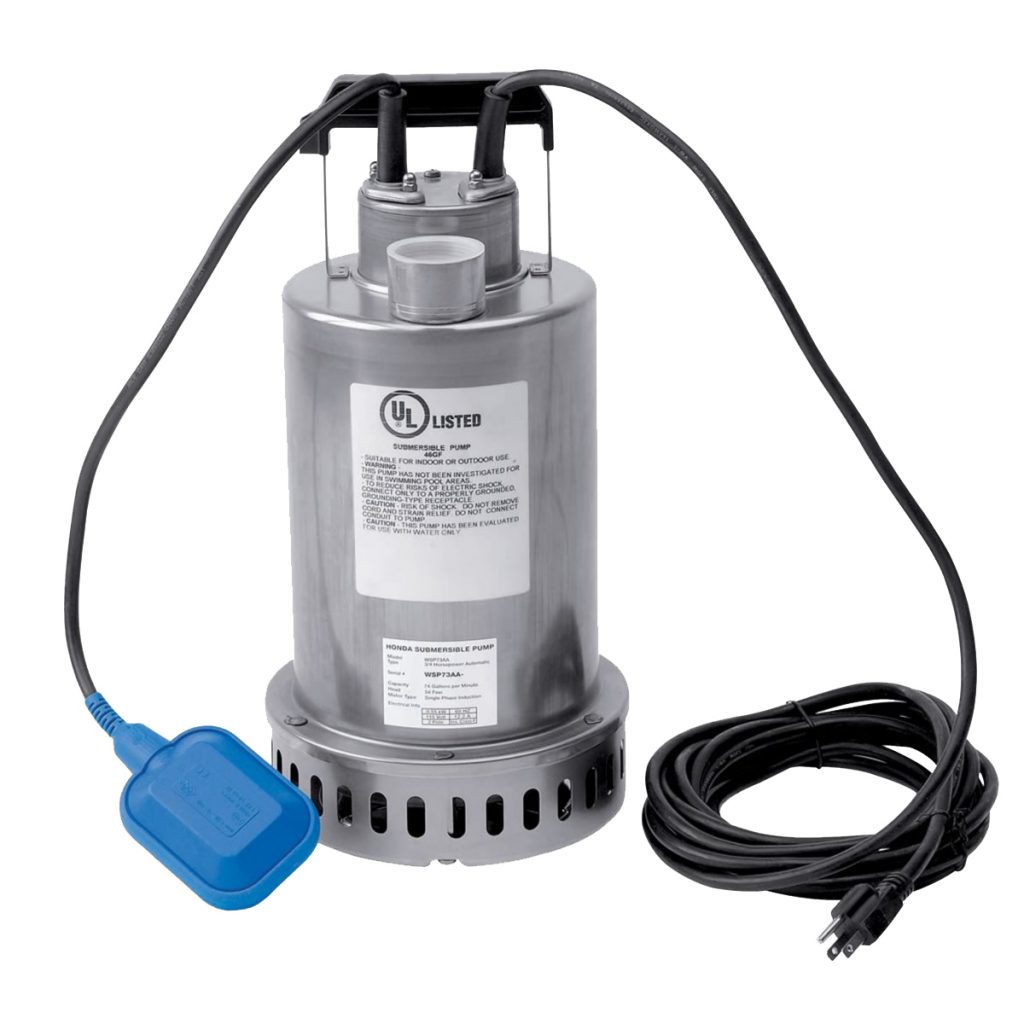

Honda WSP73AA
3/4 hp 115V submersible trash pump
Top discharge
74 gal./min capacity
Automatic non-mercury float switch
Double mechanical seal construction
Rated for continuous use
50ft. cord

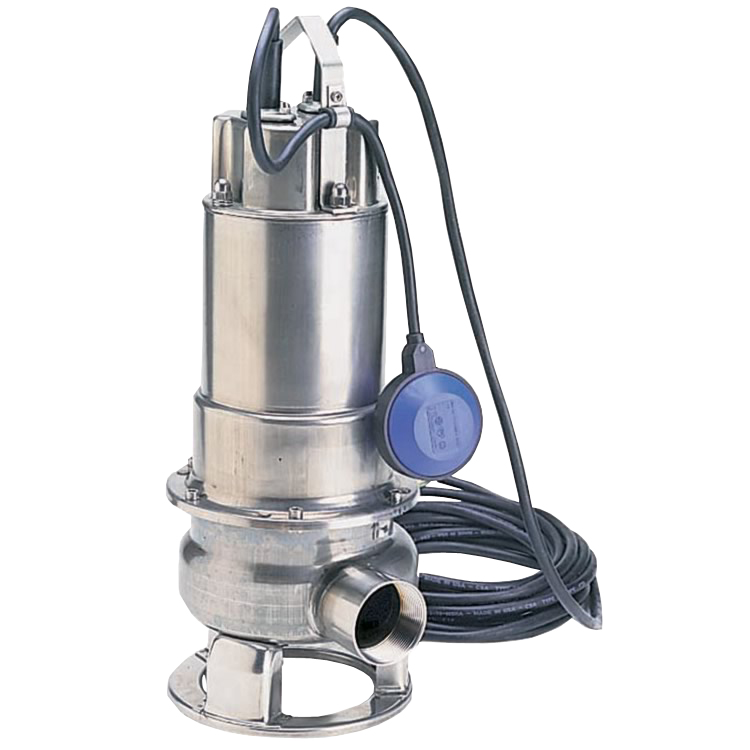

WSP100AA
1 hp 115V submersible trash pump
Side discharge
150 gal./min capacity
Solids handling capability up to 2″
Automatic non-mercury float switch
Rated for continuous use

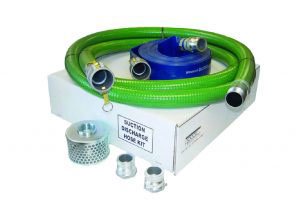

Boxed Pin Lug Hose Kits
Includes 20' green suction, 50' blue discharge hose, 3/8" hole steel strainer coupled with male & female pin lug couplings
Hose Kits
| Pump Model | Manufacturer Number | Description |
|---|---|---|
| WB20X, WT20X, WMP20X, WDP20X | 124020-1145-PINKT | 2" Pin Lug Suction & Discharge Hose Kit |
| WB30X, WT30X, WDP30X | 124030-1145-PINKT | 3" Pin Lug Suction & Discharge Hose Kit |
| WT40X | 124040-1145-PINKT | 4" Pin Lug Suction & Discharge Hose Kit |

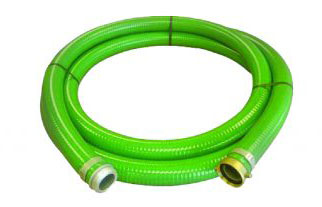

Green PVC Water Suction Hose Assemblies
Includes a rigid PVC reinforcement suction hose coupled male & female pin lug
Green PVC Water Suction Hose
| Pump Model | Manufacturer Number | Description |
|---|---|---|
| WB20X, WH20X, WT20X, WMP20X, WDP20X | 1240-2000-20H | 2'x20' Green PVC, Pin Lug Coupling |
| WB30X, WT30X, WDP30X | 1240-3000-20H | 3'x20' Green PVC, Pin Lug Coupling |
| WT40X | 1240-4000-20H | 4'x20' Green PVC, Pin Lug Coupling |

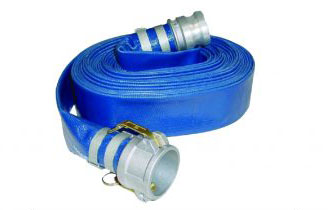

Discharge Hose Assemblies
Includes a discharge hose coupled male & female pin lug
Discharge Hose
| Pump Model | Manufacturer Number | Description |
|---|---|---|
| WB20X, WH20X, WT20X, WMP20X, WDP20X | 1145-2000-50H | 2'x50' Blue 80 PSI Discharge, Pin Lug Coupling |
| WB30X, WT30X, WDP30X | 1145-2000-50H | 3'x50' Blue 55 PSI Discharge, Pin Lug Coupling |
| WT40X | 1145-4000-50H | 4'x50' Blue 50 PSI Discharge, Pin Lug Coupling |
